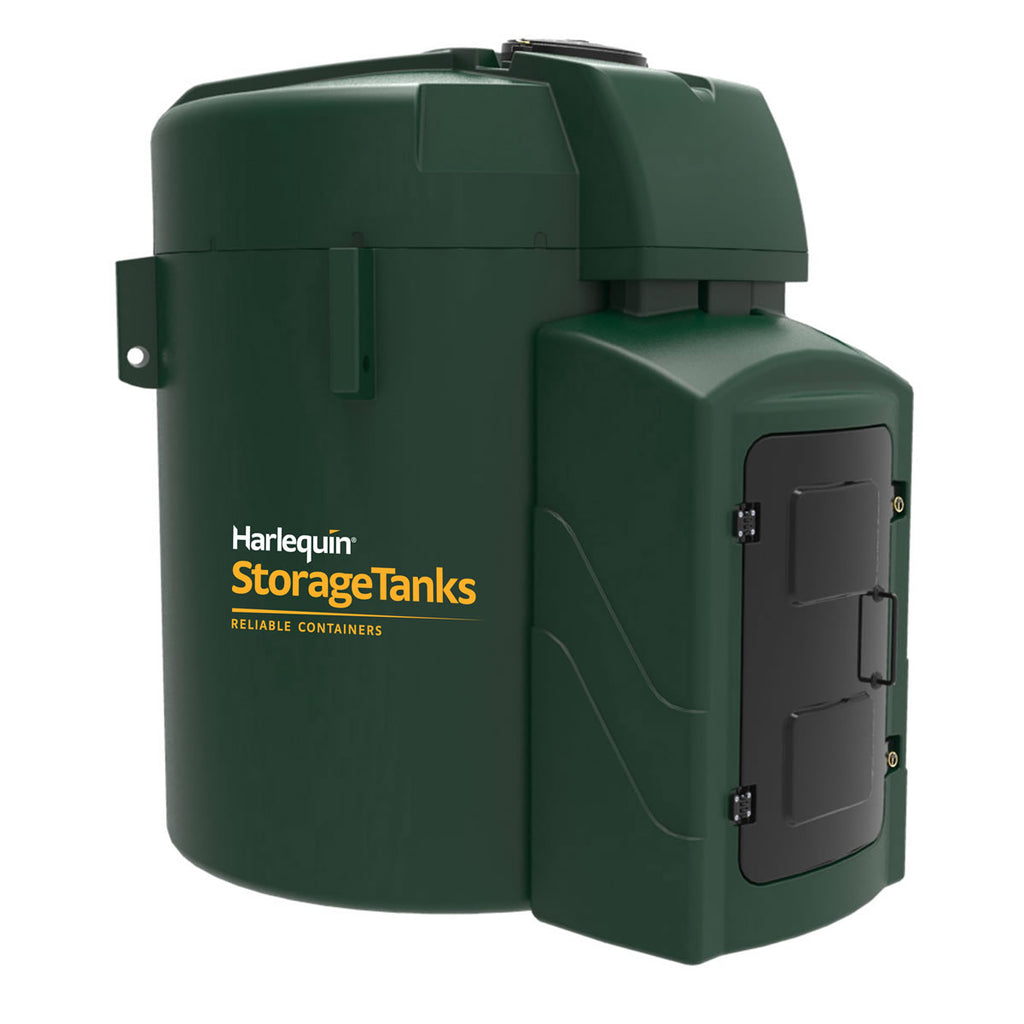

Harlequin 7500ltr Fuel Station with Fuel Management System
£6,145.00
excl. VAT- Description
- Specifications
- Downloads
-
Harlequin 'Fuel Stations' are the ultimate in diesel dispensing tanks and technology. Featuring forecourt style refuelling convenience and a range of added value technologies as standard, these high specification fuel tanks provide complete diesel storage and diesel dispensing solutions for commercial, industrial and agricultural customers alike.
Standard features;
- Easy access doors and lids.
- Integrally bunded
- 56L/Min 230V Fuel Pump*
- Tecalemit HDA Eco Fuel Management System
- 10 Micron particulate & water filter
- 6mtr delivery hose with auto shut-off dispensing nozzle
- 2" BSP(M) offset fill point c/w non-return valve & lever ball valve
- Mechanical overfill prevention valve
- 4" lockable inspection cap
- Hydrostatic contents gauge with in-cabinet digital display
- Bulkhead light
- LRC overfill prevention probe
- Bund Monitor
- Moulded from durable medium density polyethylene material
- Lockable equipment cabinet
- Moulded-in lifting eyes
*110V, 12V 24V fuel pumps available, 72L/min fuel pump available (240V) and Fuel Managment only available in 240V
-

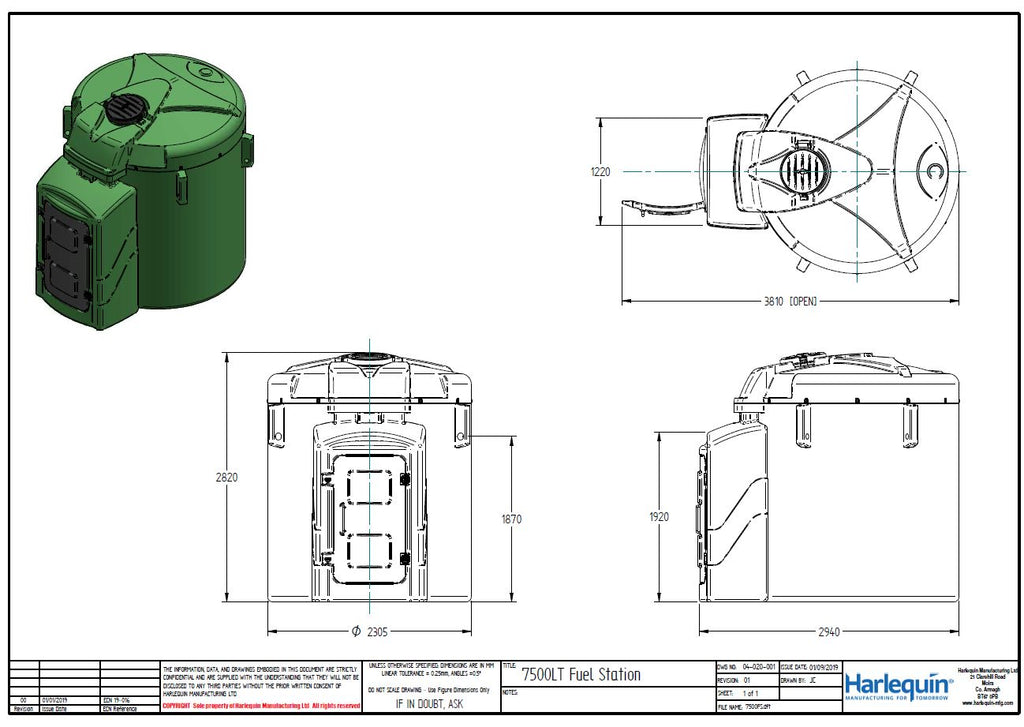

TANK SPECIFICATIONS
Nominal Capacity : 7,683 Litres
Brim-full Capacity : 8,088 Litres
Length : 2,940mm
Width : 2,305mm
Height : 2820mm
Weight : 505kgs
