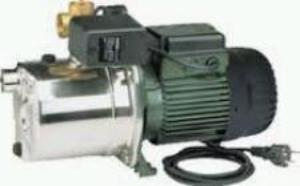

DAB JetInox M-P Self Priming Pump 240V

£259.77

  excl. VAT
  • General Description

    Self-priming pump equipped with gauge, pressure switch, power supply cable with plug and three-way brass fitting for connecting to an Expansion tank / Pressure Vessel (available separately if required).

    Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, small scale agriculture, gardening and wherever self- priming operation is necessary.

    Jetinox: stainless steel pump body.

    Motor support in cast iron, technopolymer impeller, diffuser, Venturi tube and sand guard. Stainless steel adjustment rings. Carbon/ceramic mechanical seal. Asynchronous motor closed and cooled by external ventilation. Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.


  • Specification

    • Operating range: two-poles from 0.4 to 10.5 m3/h with
    • head up to 62 metres
    • Liquid temperature range:
    • from 0°c to +35°C for domestic use
    • from 0°C to +40°C for other use
    • Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallized and chemically neutral.
    • Maximum ambient temperature: +40°C
    • Maximum working pressure:
    • 8 bar (800 kPa) for Jetinox
    • Protection level: IP 44 (IP 55 terminal board protection).
    • Insulation class: F.




  • Download Datasheet
